20X20 V Slot Aluminium Profile

Product Details:
Place of Origin: Shanghai,China
Brand Name: shcommon
Certification: SGS
Model Number: MV-6-2020w
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $2.10
Packaging Details: CARTON
Delivery Time: 5-10DAYS
Payment Terms: L/C, T/T
Supply Ability: 2500 Ton/Tons per Month

Detail Information

Grade: 20 Series Shape: Square,customized
Tolerance: ±5% Processing Service: Bending, Decoiling, Welding, Punching, Cutting
Name: Industrial Aluminium Profile Color: Silver,black,blue,customized
Material: Alloy 6063/6061/6005/6060 T5/T6 Unit Weight: 0.55kgs/meter
Slot Width: 6mm Status: In Stock, Or Need To Custom-made According To Your Quantity
Surface Treatment: Anodized Finish Size: 2020, 2040, 2060, 2080
Thickness: 1mm--Customized MOQ: 1 Piece
Selling Units: Single Item OEM Service: Avaliable
High Light:

20X20 V Slot Aluminium Profile


2080 V Slot Aluminium Profile


±5% V Slot Aluminium Profile

Product Description

black and silver v slot 2020 aluminium profile for 3D printer

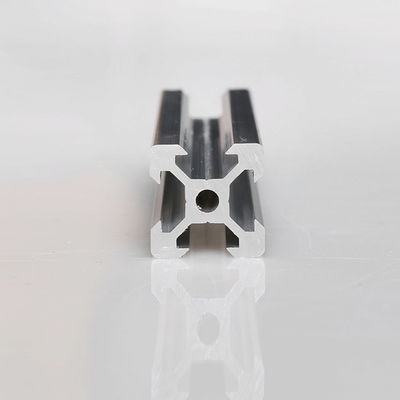

20X20 V Slot Aluminium Profile 0

Product Description

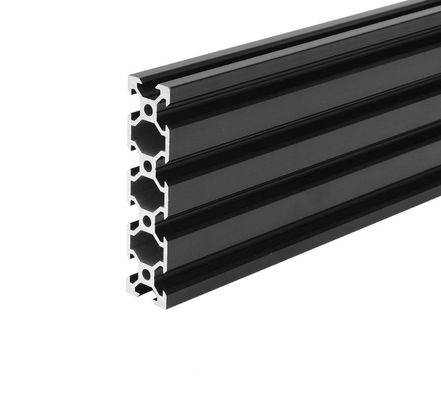

20X20 V Slot Aluminium Profile 1

 20X20 V Slot Aluminium Profile 2


6000 series Aluminum T4, T5, T6.
Square tubes, rectangular tubes, round tubes, square tubes with radius, symmetrical profiles, asymmetrical profiles, U profiles, T profiles, Z profiles, Flat bars, Square Bars, Round Bars or customized.
General profiles thickness from 0.8 to 5.0mm, for domestic market, the normal length is 6m-0/+10mm, for foreign market, the normal length is 5.8m-0/+10mm.
Surface treatment
Mechanical polishing, sand blasting, brushing, eloxal coating, powder coating, PVDF coating, wire drawing, etc.
Surface thickness
1.Anodizing protection film thickness from 7μm to 20μm.
2.Powder coating film thickness from 40μm to 120μm.
3.Electrophoresis film thickness from 12μm to 25μm
Surface Color
silver , black , golden, etc. based on RAL color chart
OEM and ODM are both welcomed.
Production standard
For material exported to foreign country, chemical composition is according to EN 573-3, mechanical properties are according to EN755-2 or EN 12020.
By express, by truck, by train or by sea.
Delivery terms
Usually EXW, FOB Shanghai port, CFR destination port, CIF destination port and so on depends on customer demands.
Shrink film, protection foam, kraft paper, carton, pallet or customized.
Payment terms
30% deposit by T/T, the balance before delivery.


Product Show

20X20 V Slot Aluminium Profile 3

20X20 V Slot Aluminium Profile 420X20 V Slot Aluminium Profile 520X20 V Slot Aluminium Profile 6


20X20 V Slot Aluminium Profile 8

Factory Show

20X20 V Slot Aluminium Profile 9

SHANGHAI COMMON ALUMINUM INDUSTRY PRODUCTS COMPANY  has 28 extrusion lines (600 ton -4000 ton), 5 powder coating lines (2 horizontals, 3 verticals),2 anodizing lines, 4 wood grain lines,6 sand blasting lines, 12 thermal break lines , which makes the capacity of 8,000 tons per month.
With the 7 years rapid development, the sales &service network has covered not only the domestic market, but also south-east Asia,Europe, Middle East, Africa, Latin America and other regions.
The company has been serving clients at home and abroad with the concept of fairness, honesty, dedication and efficiency. We committed to creating a world well-known enterprise, and we are looking forward to working with you in near future!


20X20 V Slot Aluminium Profile 10

Packing & Shipping

20X20 V Slot Aluminium Profile 11


Why Choose Us
1. OEM and ODM service is available. (accepet customized)
2. We have experienced engineers and quality control team as our strong backing.
3. High quality, competitive price, quick response is our mission.
4. Professional technical support
5. Strict quality control process
6. Rich experience in mould design, aluminium profiles production and packing.
1.For the length
A: Max length is 7m and could be customized
2. The thickness film
A: Anodizing film: 8-12 mircon
Anodizing & Electrophoresis film: 16-26 mircon
Powder coating film: 40-120 mircon
3. Can I customize my own products?
A: Yes. We are glad to receive your drawing pictures and your request.

4. The Payment Terms
A: T/T 30% prepayment and 70% balance payment before delivery.
5. The deliver time?
A: About 10 - 15 Days after receiving your prepayment(for around 20 tons).

Any other questions, let me know. We will try our best to give you some ideas.
